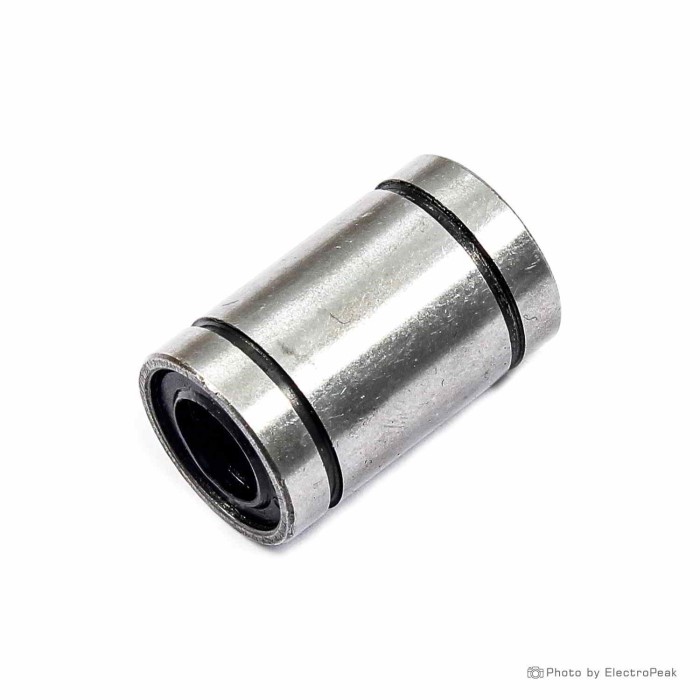

LM8UU Linear Ball Bearing - 8x15x24mm
$0.3150
In stock
SKU
3DP-01-021
Volume discounts:
- +100 4 % $0.3010
- +500 6 % $0.2950
- +1000 9 % $0.2880
- +5000 11 % $0.2810
- +10000 13 % $0.2740
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
LM5UU Linear Ball Bearing - 5x10x15mm (for 3D Printers)
Previous
LM8UU Linear Ball Bearing package contains 2 linear ball bearing, which is made of a strong, anti-corrosion, and durable stainless steel material. The linear ball bearing acts completely different from the common ball bearing. The usual ball bearing, known as a radial ball bearing is mounted on a static or rotational shaft and create or transfer rotational motion. But the linear ball bearing is mounted on a static shaft to slide along a linear path on the shaft.
This LM8UU bearing is a linear bearing suitable for sliding along and inline an 8mm shaft.
This linear bearing is important for controlling of the stepper moving.
It can be used in 3D printers, CNC machines, Grooving machines, DIY projects, Robotics, and hobby projects.
Features of LM8UU Linear Ball Bearing - 8x15x24mm:
- 24mm long x 15mm outer diameter x 8mm inner diameter
- Dynamic load rating C(N): 260 N
- Static load rating Co(N): 400 N
- 4 Ball races inside
- 2 grooves with 14.5mm outer diameter
- Grooves vary in width between 1mm and 1.25mm
- Material: Steel
