PN532 13.56MHz NFC Card Reader Module Compatible with Raspberry Pi
$4.2500
In stock
SKU
MIN-01-075
Volume discounts:
- +25 4 % $4.0800
- +100 6 % $3.9900
- +300 8 % $3.9000
- +500 10 % $3.8200
- +1000 12 % $3.7300
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
Waveshare ST25R3911B NFC Development Kit
Previous
Description

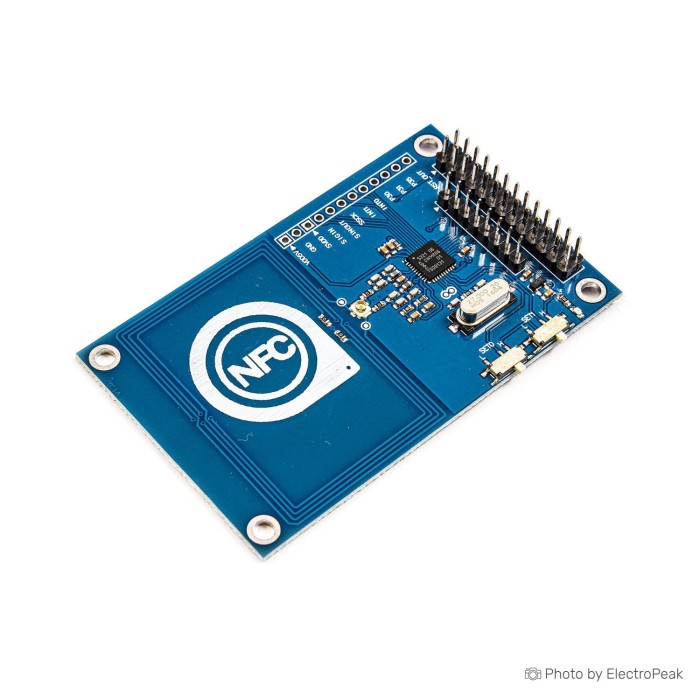

ITEAD PN532 NFC module, as the name implies, is based on PN532 chip and used for 13.56MHz near field communication. The module is equipped with onboard antenna, so no external antenna coil is required. It is compatible with SPI, IIC and UART communication interface. With NFC library support for Arduino and Raspberry Pi offered by us, it is quite useful for developing products with NFC functions.
Characteristics: . Longest effective communication distance of 3 cm, Supports switching of SPI, IIC and UART interface, Can be used for 13.56M contactless communication, Compatible with ISO14443 Type A and Type B standards
Features
IC: PN532
Operating Voltage: 3.3V
Supply Voltage : 3.3 ~ 5.5V
Max Current: 150mA
Working Current (Standby Mode): 100mA
Working Current (Write Mode): 120mA
Working Current (Read Mode): 120mA
Indicator: PWR
Interface: SPI Interface, Std Raspberry Pi 20pins Interface
