HW-225 Wireless Charger Transmitter Module /5W
$2.5000
In stock
SKU
BAT-16-017
Volume discounts:
- +100 6 % $2.3400
- +300 9 % $2.2800
- +500 11 % $2.2300
- +1000 13 % $2.1700
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
A11 Wireless Charging Transmitting Coil 50mm/6.5uH
Previous

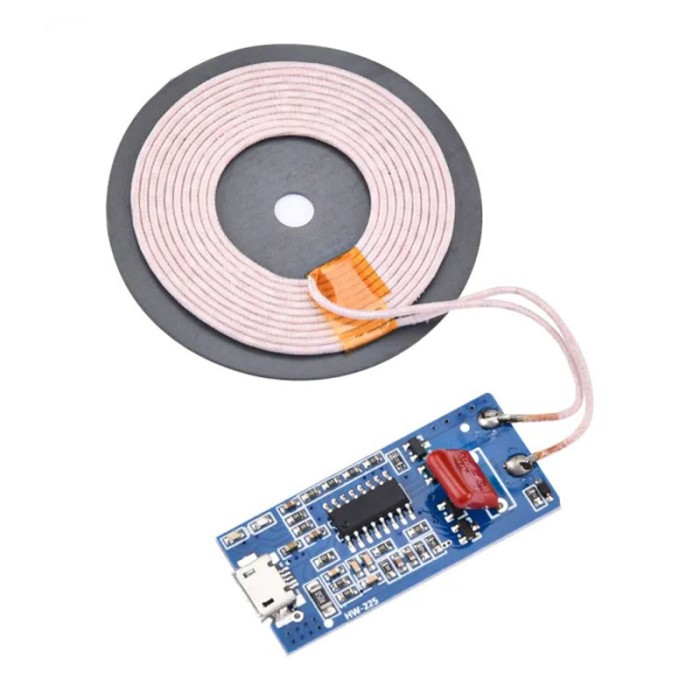

The HW-225 Wireless Charger Transmitter Module is a compact and efficient 5W wireless charger designed for easy mobile phone charging. It supports the WPC standard and provides compatibility with a wide range of devices, including iPhone, Android, and Xiaomi. With dual LED indicators, the module informs users of its charging, saturation, and foreign object detection (FOD) statuses. It also ensures safe and stable charging with low power consumption and high efficiency.
Specifications of HW-225 Wireless Charger Transmitter Module
-
Working Voltage: DC 5V
-
Working Current: 1A
-
Output Power: 5W
-
Working Temperature: -20°C to 85°C
-
Storage Temperature: -50°C to 125°C
-
Work Humidity: 5% to 95% RH
-
Module Size: 41 x 19 x 18mm
-
Transmit Coil Size: 50 x 50 x 5mm
-
Compatibility: WPC standard, suitable for iPhone, Android, and Xiaomi devices
How to Use of HW-225 Wireless Charger Transmitter Module
-
Connect the module to a 5V power source. The green LED will light up to indicate it is powered.
-
Place the phone on the module with its back centered on the coil for charging. The red LED will light up, and the green LED will turn off during charging.
-
Once charging is complete, the red LED turns off and the green LED lights up again.
-
If a metal object is detected on the transmitter coil, both the red and green LEDs will flash. Remove the object to resume normal operation.
Datasheet of HW-225 Wireless Charger Transmitter Module
Datasheet: Not available
