GM66 Barcode Reader Module
$27.5000
In stock
SKU
MOD-05-008
Volume discounts:
- +10 4 % $26.4400
- +25 6 % $25.9100
- +50 8 % $25.3700
- +100 10 % $24.8400
- +300 12 % $24.3100
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
Waveshare OV5693 5MP USB Camera (B)
Previous

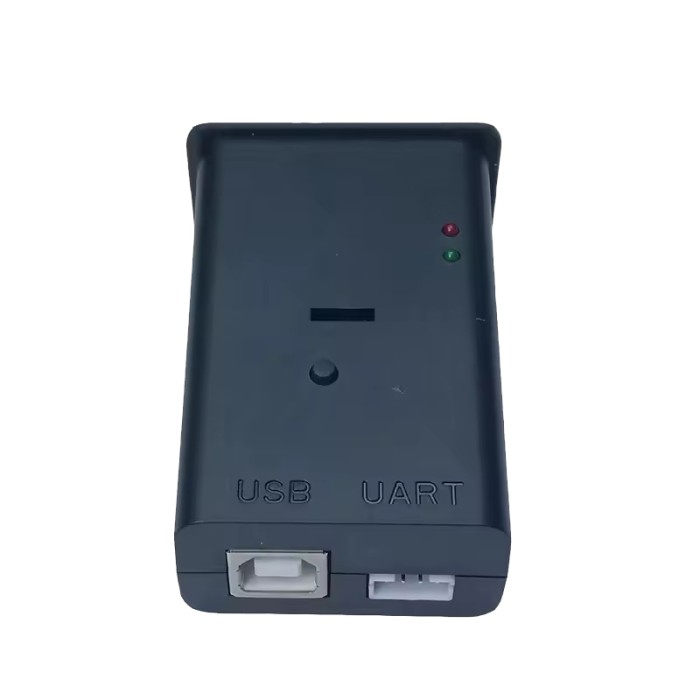

The GM66 Barcode Reader Module is a compact and versatile scanner capable of decoding 1D and 2D barcodes. It supports a wide range of formats, making it ideal for applications such as retail, logistics, and industrial automation. Featuring USB2.0 and UART interfaces, it ensures seamless connectivity. Its robust design includes LED indicators and a buzzer for decoding feedback, while offering reliable performance under varying light and temperature conditions.
Specifications of GM66 Barcode Reader Module
-
Model: GM66
-
Type: Barcode Scanner
-
Decoding Ability:
-
1D: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codebar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, Postal Code, etc.
-
2D: PDF417, QR Code, Data Matrix, etc.
-
-
Interface: USB2.0 / UART
-
Resolution: 0.10mm (4mil)
-
Operating Voltage: 5V
-
Operating Current: 120mA
-
Type of Illuminant: 617nm LED (Aimer), 6500K LEDs (Illumination)
-
LED Indicator: Buzzer and bi-color light (Red-power, Blue-decoding successfully)
-
Scan Angle: Roll: 0-360°, Pitch: ±65° or greater, Yaw: ±60° or greater
-
Scanning Angle: Inclination angle 34°, Elevation angle 26°
-
Print Contrast: 30% minimum reflective difference
-
Reading Distance: 25–250mm
-
Operating Temperature: -20°C to 55°C
-
Storage Temperature: -40°C to 65°C
-
Humidity: 5% to 95% Relative Humidity, Non-condensing
-
Light Levels: 0–85000 LUX
-
Weight: 31g
-
Dimensions: 62.3 x 42.5 x 24.5mm
Datasheet of GM66 Barcode Reader Module
Datasheet: Not available
