FM Radio Receiver Module Kit
$1.2500
In stock
SKU
MOD-02-008
Volume discounts:
- +100 6 % $1.1700
- +300 9 % $1.1400
- +500 11 % $1.1100
- +1000 13 % $1.0900
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
FM7303 FM Stereo Radio Circuit Board
Previous

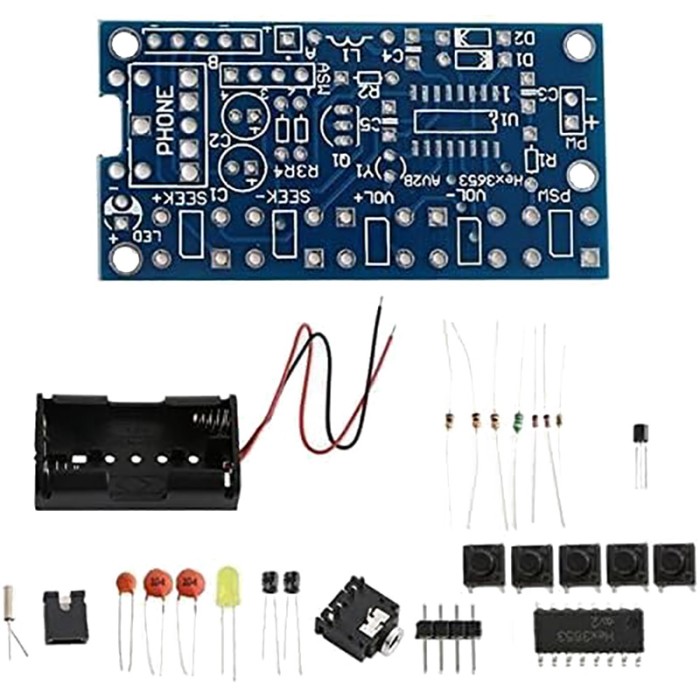

The FM Radio Receiver Module Kit is designed for electronics enthusiasts, students, and hobbyists. This kit offers a hands-on experience in assembling and tuning a functional FM radio. The module is easy to manufacture and install, making it ideal for beginners. It features a rich FM program with good sound quality, and its small size makes it convenient for portable use. The kit includes a special FM receiver IC, providing all necessary components from the antenna to the audio output. With its search tuning, signal detection, and mute circuit, this kit ensures a high success rate in assembly and use.
Specifications of FM Radio Receiver Module Kit
-
Frequency Range: FM 76-108MHz
-
Supply Voltage: DC 1.8V-3.6V
-
Size: 5.5 x 2.8 cm / 2.17 x 1.10 inches
-
Components: Resistors, capacitors, diodes, IC chip, inductor, transistor, crystal, LED, push buttons, and audio socket
-
Welding Sequence: SMT components, resistors, inductor, capacitors, diodes, keys, headphone jack, and switch button
-
Assembly Method: Manual soldering and adjustment of components
-
Features: Search tuning, signal detection, mute circuit, and frequency-locked loop FLL circuit
-
Output: 3.5mm stereo audio socket for headphones
How to Use of FM Radio Receiver Module Kit
-
Assemble the kit by following the welding sequence: SMT components, resistors, inductors, capacitors, diodes, keys, headphone jack, and switch button.
-
Power the circuit with 1.8V-3.6V using a 2-AA series battery holder.
-
Press the power button to start the circuit.
-
Use the SEEK+ and SEEK- buttons to search for FM stations.
-
Adjust the volume with the VOL+ and VOL- buttons.
Development Resources of FM Radio Receiver Module Kit
Write Your Own Review
