CAN to TTL Communication Module
$1.5000
In stock
SKU
COM-05-101
Volume discounts:
- +100 6 % $1.4100
- +300 8 % $1.3800
- +500 10 % $1.3500
- +1000 13 % $1.3100
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
CJMCU-2232 FT2232HL USB to UART/FIFO/SPI/I2C/JTAG/RS232 module
Previous

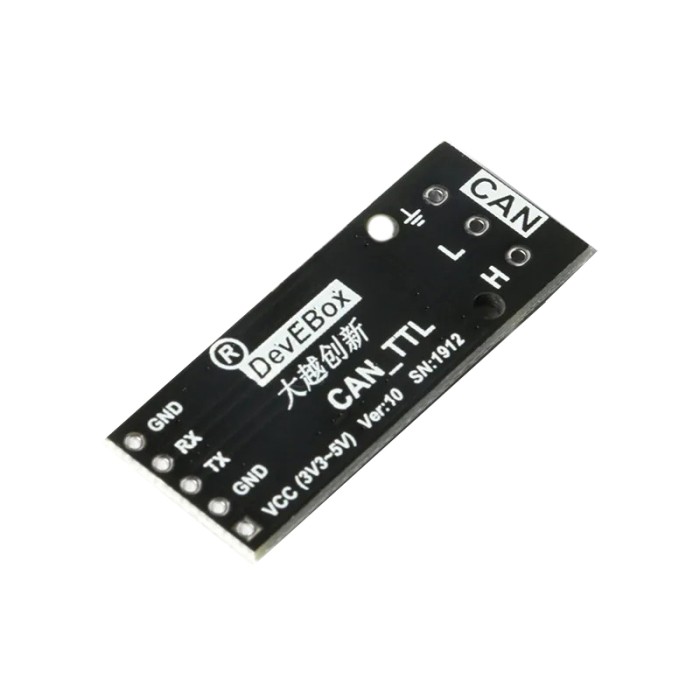

The CAN to TTL Communication Module with VP230 chip facilitates seamless communication between Controller Area Network (CAN) bus devices and TTL-level microcontrollers or other embedded systems. This module acts as a bridge, converting CAN bus signals to TTL-level signals, enabling integration of CAN bus technology into projects requiring reliable and efficient data exchange. It is suitable for automotive applications, industrial automation, and other scenarios where CAN bus communication is prevalent.
Specifications of CAN to TTL Communication Module (with chip VP230):
- Chipset: VP230 for CAN to TTL conversion
- CAN Interface: Supports CAN 2.0A/B standard
- TTL Interface: UART TTL-level (3.3V or 5V compatible)
- Baud Rate: Adjustable baud rate up to 1 Mbps
- Operating Voltage: 3.3V to 5V DC
- Current Consumption: <10mA
- Transmission Distance: Up to 1 km (CAN bus)
- Dimensions: 40.7x13.76mm
- Applications: Ideal for automotive diagnostics, industrial automation, embedded systems requiring CAN bus communication
Datasheet of CAN to TTL Communication Module (with chip VP230):
https://www.ti.com/lit/ds/symlink/sn65hvd230.pdf
https://bir-robotic.ir/wp-content/uploads/2023/01/CAN-to-TTL-converter-on-board-information.webp
