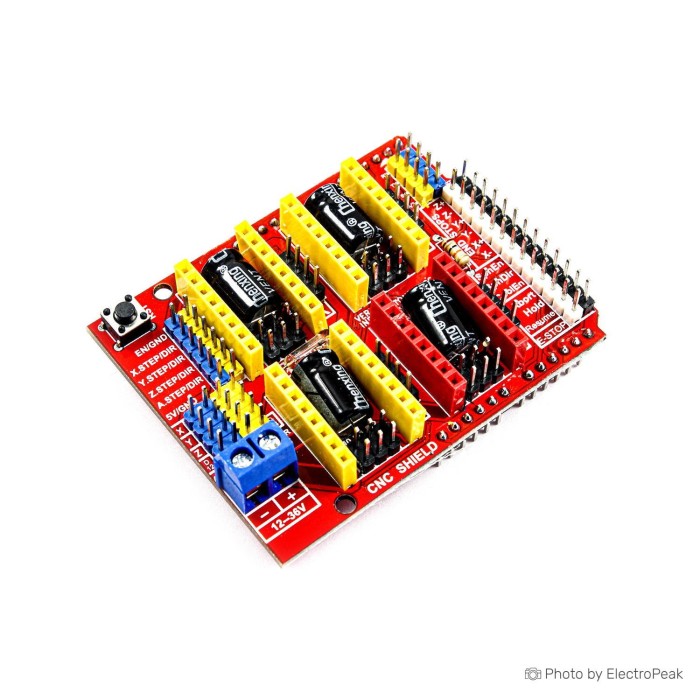

CNC Shield V3 3D Printer Expansion Board
$1.2500
In stock
SKU
ARD-02-050
Volume discounts:
- +100 7 % $1.1600
- +300 10 % $1.1300
- +500 12 % $1.1000
- +1000 14 % $1.0700
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
Features
GRBL 0.8c compatible.
4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
2 x End stops for each axis (6 in total)
Spindle enable and direction
Coolant enable
compatible stepper drivers:A4988, DRV8825 and others
Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )Â
Stepper Motors can be connected with 4 pin molex connectors or soldered in place.
Runs on 12-36V DC. (At the moment only the Pololu DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)
Package Include:
1 x Arduino CNC Shield V3
