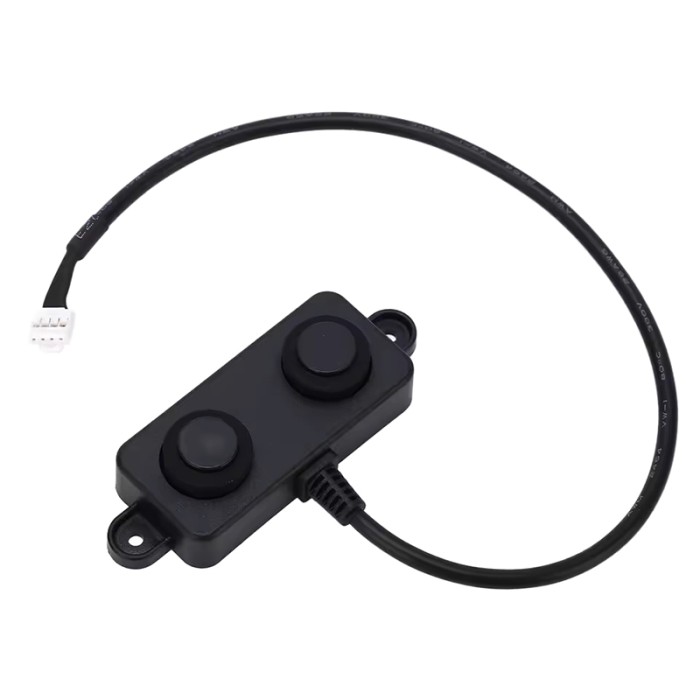

A02YYUW Waterproof Ultrasonic Distance Module
$23.9500
In stock
SKU
SEN-07-021
Volume discounts:
- +25 4 % $23.0500
- +50 6 % $22.6000
- +100 8 % $22.1500
- +300 9 % $21.6900
- +500 11 % $21.2400
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
HY-SRF05 Ultrasonic Distance Sensor Module
Previous
The A02YYUW Waterproof Ultrasonic Distance Module is a robust and versatile sensor designed for accurate distance measurement in challenging environments. It features a waterproof casing with an IP67 rating, making it suitable for outdoor and industrial applications. With a wide sensing angle of 100°, it provides reliable performance over a range of 3cm to 450cm. Its compact design and UART output make it easy to integrate into various projects.
Specifications of A02YYUW Waterproof Ultrasonic Distance Module
-
Operating Voltage: 3.3–5V
-
Standby Current: ≤5mA
-
Average Current: ≤8mA
-
Blind Zone Distance: 3cm
-
Ranging Distance for Flat Object: 3–450cm
-
Output: UART
-
Response Time: 100ms
-
Probe Center Frequency: 40KHz ± 1.0KHz
-
Operating Temperature: -15°C to 60°C
-
Storage Temperature: -25°C to 80°C
-
Sensing Angle: 100°
-
Protection Rate: IP67
Datasheet of A02YYUW Waterproof Ultrasonic Distance Module
Datasheet: Not available
