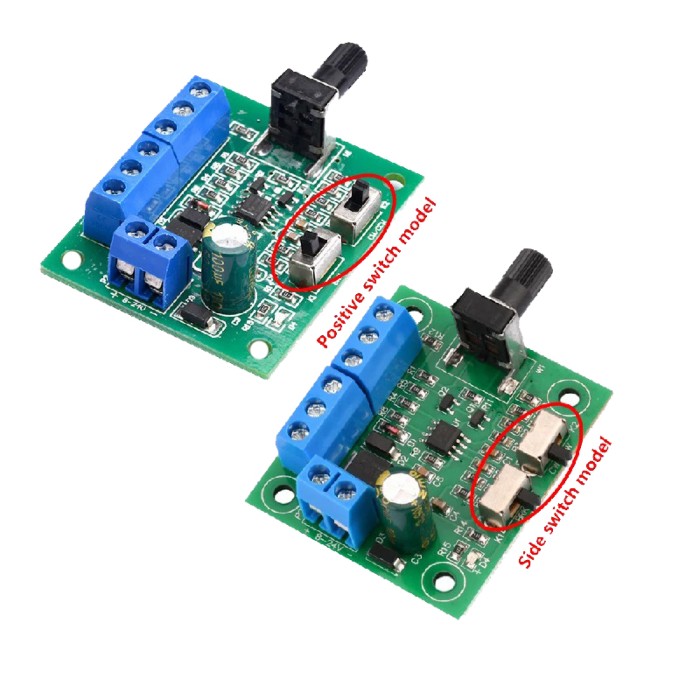

8~24V Brushless DC Motor Driver

The 8~24V Brushless DC Motor Driver is designed to provide efficient speed control for brushless DC motors with drive and PWM terminals. With a working voltage range of DC 8-24V, this driver is suitable for various applications requiring precise motor control. It features onboard start-stop and forward-reverse switches, making it versatile and easy to use. The driver outputs a 5V PWM signal with a frequency of about 18kHz and a duty cycle range from 0% to 100%, allowing for smooth and adjustable speed control.

Specifications of 8~24V Brushless DC Motor Driver

• Operation Voltage: 8-24V DC

• Operation Current: 4A

• Dimensions: 35x40mm

• Output Signal: 5V PWM

• PWM Frequency: 18kHz

• Duty Cycle: 0% - 100%

• Control Switches: Start-stop switch, forward-reverse switch

• Compatibility: For brushless motors with drive and PWM terminals
