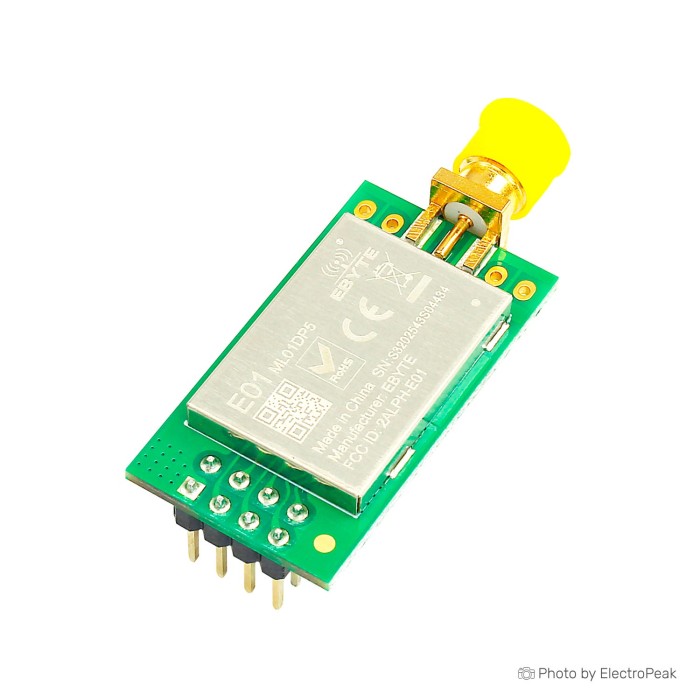

E01-ML01DP5 NRF24L01+PA Wireless Communication Module - 2000m Range
$5.2500
In stock
SKU
COM-09-032
Volume discounts:
- +25 4 % $5.0500
- +50 6 % $4.9500
- +100 7 % $4.8600
- +300 9 % $4.7600
- +500 11 % $4.6600
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
RF24L01+ PA+LNA Wireless Transceiver Module - 1800m Range
Previous
ML01DP5 is based on original imported nRF24L01P form Nordic in Norway. And equipped with 20dBm power amplifier chip imported from USA, which makes the transmitting power achieves 100mW (20dBm) while the receiving sensitivity enhanced by 10dB.
Specificatoins of E01-ML01DP5 NRF24L01+PA Wireless Communication Module - 2000m Range:
- Working frequency: 2400~2525 MHz Default: 2.4GHz (16MHz oscillator)
- Transmitting power: 20 dBm Max. Power (100mW)
- Receiving sensitivity: -96 dBm Air data rate: 250kbps
- Air data rate: 250k~2Mbps Default: 250kbps
- Test distance: 2500m In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 250kbps
- Size: 18 * 33.4 mm Without SMA
- Antenna type : SMA-K
- Communication interface: SPI
- Package: DIP
- Power supply : min. 2.0 V typ. 3.3 V max. 3.6 V
- Communication level: min. 2.0 V typ. 3.3 V max. 3.6 V
- Transmitting current : min. 120mA typ. 130mA max. 140mA (Condition: 20dBm（100mW）)
- Receiving current: min.18mA typ. 20mA max. 22mA
- Sleep current: min.0.5uA typ.1.0uA max.2.0μA
- Operating temperature: min.-40„ typ.20„ max.+85„
- Operating humidity: min.10% typ.60% max.90%
- Storage temperature: min.-40„ typ.20„ max.+125„
Features of E01-ML01DP5 NRF24L01+PA Wireless Communication Module - 2000m Range:
- for more info : https://www.cdebyte.com/products/E01-ML01DP5#Specification
Extra Notes:
https://github.com/lumapu/ahoy
https://ahoydtu.de/getting_started/
