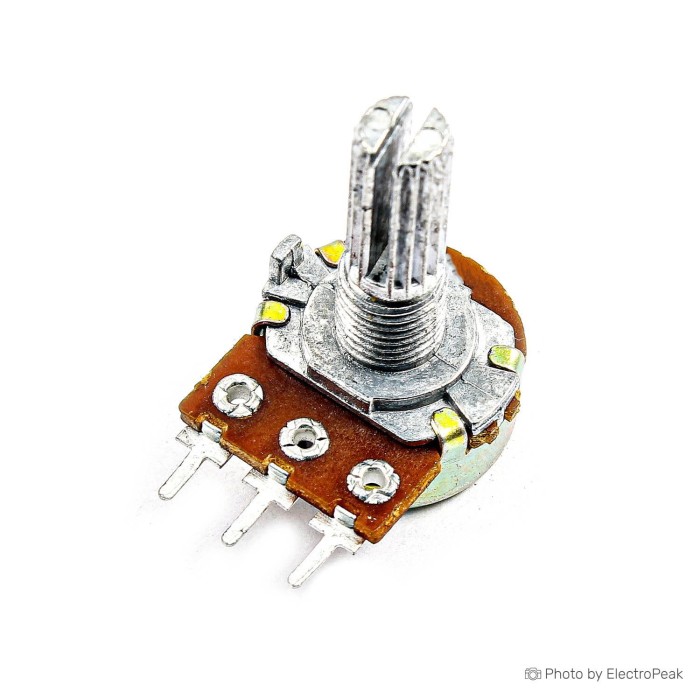

10K Ohm WH148 Rotary Potentiometer
$0.0940
In stock
SKU
ELC-04-004
Volume discounts:
- +100 4 % $0.0900
- +500 6 % $0.0880
- +1000 9 % $0.0859
- +5000 11 % $0.0839
- +10000 13 % $0.0819
10K Ohm WH148 Rotary Potentiometer is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
1K Ohm WH148 Rotary Potentiometer
Previous
A potentiometer is a three-terminal resistor with a sliding or rotating contact that forms an adjustable voltage divider. If only two terminals are used, one end and the wiper, it acts as a variable resistor or rheostat. The measuring instrument called a potentiometer is essentially a voltage divider used for measuring electric potential (voltage). the component is an implementation of the same principle, hence its name. Potentiometers are commonly used to control electrical devices such as volume controls on audio equipment. Potentiometers operated by a mechanism can be used as position transducers, for example, in a joystick. Potentiometers are rarely used to directly control significant power (more than a watt), since the power dissipated in the potentiometer would be comparable to the power in the controlled load.
Specifications:
- A common element in electronic devices is a three-terminal resistor with a continuously adjustable tapping point controlled by rotation of a shaft or knob.
- Cermet Resistive Material trimming potentiometer for device interior or Printed circuit boards which adjustable the resistance less.
- Through hole DIP mounting type.
- Single turn design cermet potentiometer, square linear.
- Quantity: 10pcs
