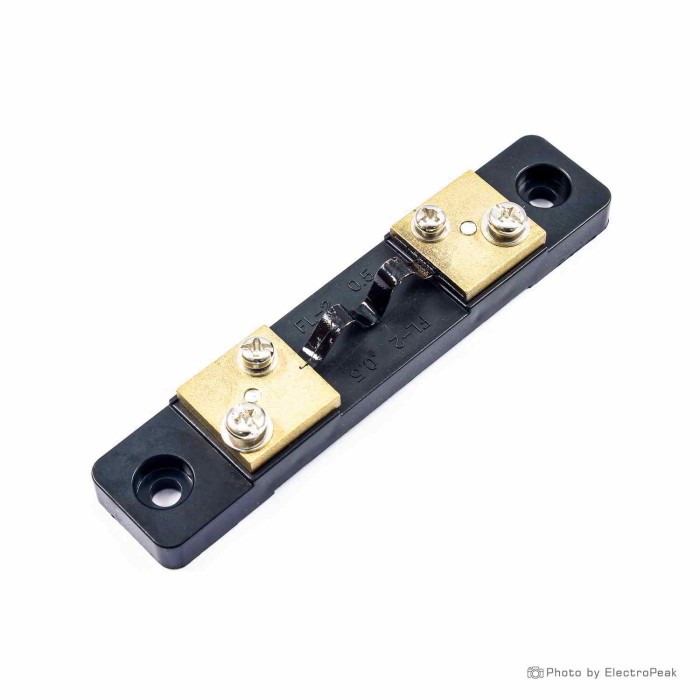

Current Shunt Resistor - 10A
$1.7500
In stock
SKU
TLS-06-014
Volume discounts:
- +100 7 % $1.6300
- +300 9 % $1.5900
- +500 11 % $1.5500
- +1000 14 % $1.5100
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
LCR-T7 Multifunction Tester
Previous
Description :
75mV Voltage Drop and 10A Rated(Maximum) Current,
75mV satisfies most of the DC ammeter.
Made of Copper with Anti-Rust plated,
ensures the performance of stability and durability.
External type
Two holes on both sides for a solid placing, and nuts for the circuit connection.
0.5% Accuracy and 120% Overload Rated Current(For 2 hours)
Connection: A shunt needs to be placed parallel with the Ammeter(Moving Coil Galvanometer), to bypass the current. Normally, the two outside terminals were connected with the power circuit directly, and both the inside terminals placed in series with the Meter.
