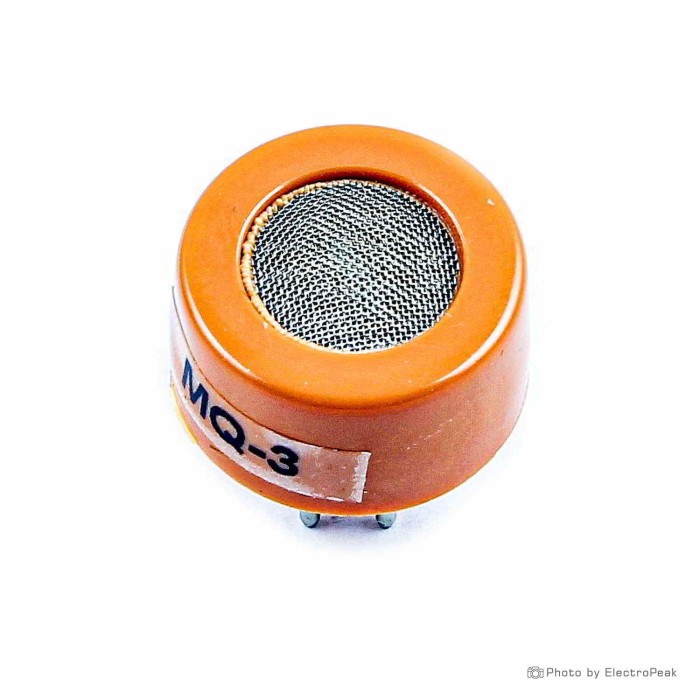

MQ-3 Alcohol Gas Sensor Module
$0.9500
In stock
SKU
SEN-16-023
Volume discounts:
- +100 5 % $0.9000
- +300 7 % $0.8800
- +500 9 % $0.8600
- +1000 11 % $0.8500
Product Variations:
Add an Accessory:
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
MQ-135 Gas Sensor and Air Quality Control Module
Previous
The alcohol gas sensor detects the concentration of alcohol gas in the air and outputs its reading as an analog voltage. The concentration sensing range of 0.04 mg/L to 4 mg/L is suitable for breathalyzers. The sensor can operate at temperatures from -10 to 50°C and consumes less than 150 mA at 5 V.
The MQ3 GAS sensor has a very hight sensitivity to Alcohol gas. The sensitive material of MQ3 Sensor is SnO2, which has lower conductivity in clean air. When the target alcohol gas exist, the sensor™s conductivity is higher along with the gas concentration rising. MQ3 GAS sensor has high sensitivity to Alcohol, and good resistance to disturb of gasoline, smoke and vapour. The sensor could be used to detect alcohol with different concentration, it is with low cost and suitable for different application.
Specificatoins of MQ-3 Alcohol Gas Sensor Module:
- Circuit Voltage : 5V
- Heating Resistance : 33 ± 5%
- Heating consumption : About 350mW
- Relative humidity : Less than 95%RH
Features of MQ-3 Alcohol Gas Sensor Module:
- High sensitivity to alcohol, gasoline, Smoke and small sensitivity to Benzine..
- Fast response and High sensitivity.
- Stable and long life.
- Simple drive circuit.
