Establishing a Wireless Connection with Arduino and NRF24l01

Overview

Nowadays, establishing a wireless connection and creating a wireless network is very important in communication and IOT projects. In this tutorial, you’ll learn how to establish a wireless connection between two Arduino boards and create a network using the NRF24L01 module.

What You Will Learn

What Is the NRF24L01 Module and How Does It Work?

There are different ways for wireless communication such as Bluetooth, WiFi, and etc. Using the NRF24L01 module is one of the most affordable, simple, and practical ways.
NRF24L01 Module is a transceiver module, which means it can both send and receive data. NRF24L01 works in 2.4 GHz frequency and uses GFSK modulation. The maximum speed of data transmission of this module is up to 2Mbps and the maximum board is 100 meters (for models with an external antenna the board can be 1 km) in free space.
parameter ResponseTypical value
Working voltage 3.3 v
Current usage in send mode 11.3 mA
Current usage in receive mode 12.3 mA
Current usage in sleep mode 900 nA
Temareture range -40 to +85 C
price 2.5 $
Capability to create a network is one of the NRF module advantages; each NRF module can be connected to 6 other modules.  Therefore, the affordable price, being easy to use, small size, networking capabilities, high board and suitable data transfer speeds make the NRF24l01 module a great option for wireless and IOT projects.  NRF24L01 module interface microcontrollers in SPI protocol and has 8 pins:
Pin Operation
GND Circuit ground
Vcc Circuit supply voltage(3.3V)
CE Chip Enable
CSN SPI Chip Select
SCK Connection CLK
MOSI Receiving data from Master
MISO Sending data to Master
IRQ Intrupt pin

Required Materials

Hardware Components

Arduino UNO R3 × 2
NRF24L01 × 2

Software Apps

Arduino IDE

Connecting Two Arduino Boards to Establish a Wireless Connection

In order to connect two Arduino boards, you need two NRF24L01 modules, one as master and another as slave. In this example, using a volume on the master side, we control the servo motor on the slave side.

Circuit

Tip
You can connect CSN and CE to any digital pins.
Tip
Connect SPI pins of the module to SPI pins on board.

Code

You need the RF24 library to use NRF24L01 module. Download the library from the following link:

Rf24 Library Download

Tip
You need two different codes for slave and master to establish a connection.

Master

Upload the following code on your master board.

/*
  NRF24L01 - Controle a servo motor wirelessly
  Master
  modified on 8 Apr 2019
  by Saeed Hosseini @ Electropeak

Home
*/ #include <SPI.h> #include <nRF24L01.h> #include <RF24.h> RF24 radio(7, 8); // CE, CSN const byte address[][6] = {"Node1"}; const int potpin = A0; int val = 0; void setup() { radio.begin(); radio.openWritingPipe(address); radio.setPALevel(RF24_PA_MIN); radio.stopListening(); } void loop() { val = analogRead(potpin); val = map(val, 0, 1023, 0, 179); radio.write(&val, sizeof(val)); delay(5);

Slave

Upload the following code on your slave board.

/*
  NRF24L01 - Controle a servo motor wirelessly

  Master
  modified on 8 Apr 2019
  by Saeed Hosseini @ Electropeak

Home
*/ #include <SPI.h> #include <nRF24L01.h> #include <RF24.h> #include <Servo.h> Servo myservo; RF24 radio(7, 8); // CE, CSN const byte address[][6] = {"Node1"}; const int servo = 9; int val = 0; void setup() { Serial.begin(9600); myservo.attach(servo); radio.begin(); radio.openReadingPipe(0, address); radio.setPALevel(RF24_PA_MIN); radio.startListening(); } void loop() { delay(5); radio.startListening(); if ( radio.available()) { while (radio.available()) { radio.read(&val, sizeof(val)); myservo.write(val); Serial.print("Servo position = "); Serial.println(val); } } }
Let’s take a closer look to the code:
RF24 radio(CS, CSN);
Create the required object for module by specifing CS and CSN pins.
const byte address[][6] = {"addr"};
Specify the address for the nodes. Be careful, the sender and receiver addresses must be the same in order to communicate.
radio.openWritingPipe(address);
Determine the receiver for transmitter.
radio.openReadingPipe(0, address);
Determine the transmitter for receiver.
radio.setPALevel(RF24_PA_MIN);
Determine the amount of power consumption for the module, this value must be determined according to the transmitter and receiver distance.
radio.stopListening();
Set the module in transmitter mode.
radio.startListening();
Set the module in receiver mode.
radio.write(&data, sizeof(data));
Sends the data by specifying its size.
radio.available();
If the receiver receives a data, it returns the value of 1.
radio.read(&data, sizeof(text));
Receives the data by specifying its size, and stores it in data variable.

Create a Network of NRF Modules

Using the NRF24L01 module, you can create a wireless connection and transfer data in your network.  In this example, we want to create a network with three slaves and perform a specific operation in the slaves based on the temperature data, the volume value and the key status sent from the master.  There are two ways to build the network, the simpler way is to act as in the previous example and to have a maximum of 6 separate addresses to send information to the master through 6 slaves.  In the second way, the tree method is used for networking. As a result, the main master is only associated with its subset, and each subset is expanded as a tree. Consequently, we can construct a network containing a maximum of 3125 NRF24L01 modules, so this method is more effective from the first one.

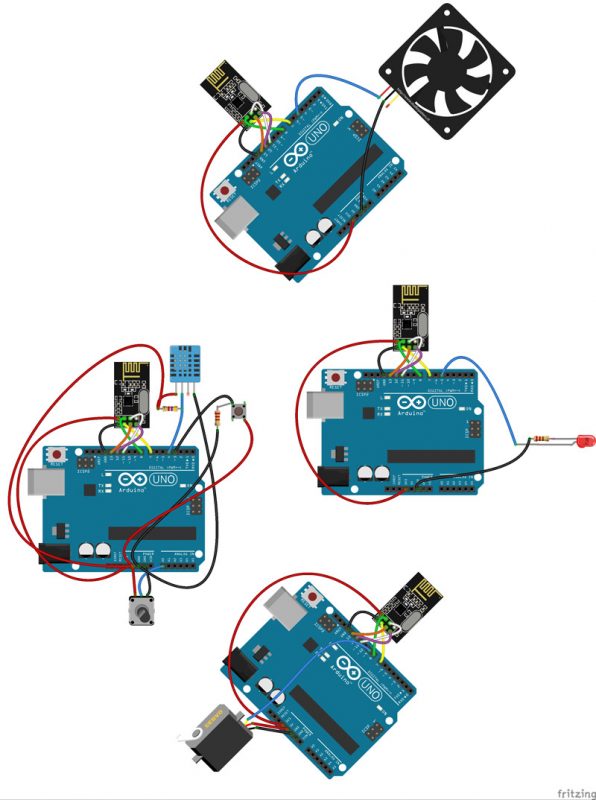

Circuit

Code

To use this method, you need the RF Network library. You can download it from the following link:

RF24Network Library Download

Master

/*
  NRF24L01 - Network
  Master
  modified on 8 Apr 2019
  by Saeed Hosseini @ Electropeak

Home
*/ #include <RF24Network.h> #include <RF24.h> #include <SPI.h> #include "dht.h" RF24 radio(7, 8); // nRF24L01 (CE,CSN) RF24Network network(radio); dht DHT; const uint16_t this_node = 00; const uint16_t node01 = 01; const uint16_t node02 = 02; const uint16_t node03 = 03; const int butpin = 3; const int potpin = A0; const int dhtpin = 4; void setup() { SPI.begin(); radio.begin(); network.begin(90, this_node); //(channel, node address) radio.setDataRate(RF24_2MBPS); pinMode(butpin, INPUT); Serial.begin(9600); } void loop() { // Send to Node 01 int potValue = analogRead(potpin); int angleValue = map(potValue, 0, 1023, 0, 179); RF24NetworkHeader header2(node01); bool ok = network.write(header2, &angleValue, sizeof(angleValue)); // Send to Node 02 int buttonState = digitalRead(butpin); RF24NetworkHeader header3(node02); bool ok2 = network.write(header3, &buttonState, sizeof(buttonState)); // LEDs control at Node 022 unsigned long pot2Value = analogRead(A1); RF24NetworkHeader header4(node03); DHT.read11(dhtpin); bool ok3 = network.write(header4, &DHT.temperature, sizeof(DHT.temperature)); }

Node01

/*
  NRF24L01 - Network
  Node01
  modified on 8 Apr 2019
  by Saeed Hosseini @ Electropeak

Home
*/ #include <RF24Network.h> #include <RF24.h> #include <SPI.h> #include <Servo.h> RF24 radio(7, 8); // nRF24L01 (CE,CSN) Servo myservo; RF24Network network(radio); // Include the radio in the network const uint16_t this_node = 01; // Address of our node in Octal format ( 04,031, etc) const uint16_t master00 = 00; // Address of the other node in Octal format const int servopin = 9; void setup() { SPI.begin(); radio.begin(); network.begin(90, this_node); //(channel, node address) radio.setDataRate(RF24_2MBPS); myservo.attach(servopin); } void loop() { network.update(); while ( network.available() ) { RF24NetworkHeader header; int data; network.read(header, &data, sizeof(data)); // Read the incoming data myservo.write(data); } delay(5); }

Node02

/*
  NRF24L01 - Network
  Node02
  modified on 8 Apr 2019
  by Saeed Hosseini @ Electropeak

Home
*/ #include <RF24Network.h> #include <RF24.h> #include <SPI.h> RF24 radio(7, 8); // nRF24L01 (CE,CSN) RF24Network network(radio); // Include the radio in the network const uint16_t this_node = 02; // Address of our node in Octal format ( 04,031, etc) const uint16_t master00 = 00; // Address of the other node in Octal format const int ledpin = 5; void setup() { SPI.begin(); radio.begin(); network.begin(90, this_node); //(channel, node address) radio.setDataRate(RF24_2MBPS); pinMode(ledpin,OUTPUT); } void loop() { network.update(); while ( network.available() ) { RF24NetworkHeader header; int data; network.read(header, &data, sizeof(data)); // Read the incoming data digitalWrite(ledpin, !data); } delay(5); }

Node03

/*
  NRF24L01 - Network
  Node03
  modified on 8 Apr 2019
  by Saeed Hosseini @ Electropeak

Home
*/ #include <RF24Network.h> #include <RF24.h> #include <SPI.h> RF24 radio(7, 8); // nRF24L01 (CE,CSN) RF24Network network(radio); // Include the radio in the network const uint16_t this_node = 03; // Address of our node in Octal format ( 04,031, etc) const uint16_t master00 = 00; // Address of the other node in Octal format const int fan = 5; //Red wire to pin 13,Black wire to pin GND void setup() { SPI.begin(); radio.begin(); network.begin(90, this_node); //(channel, node address) radio.setDataRate(RF24_2MBPS); pinMode(fan, OUTPUT); digitalWrite(fan, LOW); } void loop() { network.update(); while ( network.available() ) { RF24NetworkHeader header; int data; network.read(header, &data, sizeof(data)); // Read the incoming data if (data > 70) digitalWrite(fan, HIGH); else digitalWrite(fan, LOW); } delay(5); }

What’s Next?

Try to make a two-way connection with two NRF24L01 modules, which means that each module has the ability to send and receive data.
