ADS1256 24-bit 8-channel ADC Module
$10.7500
In stock
SKU
MOD-10-030
Volume discounts:
- +25 4 % $10.3200
- +50 6 % $10.1100
- +100 8 % $9.9000
- +300 10 % $9.6800
- +500 12 % $9.4700
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
UART TTL to RS485 Two-Way Converter
Previous

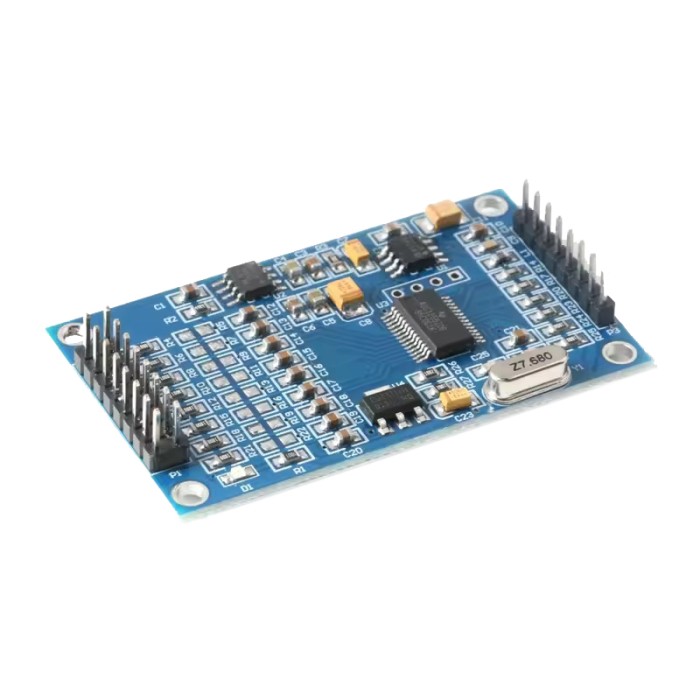

The ADS1256 24-bit 8-channel ADC Module is a high-precision analog-to-digital converter designed for applications requiring accurate voltage measurements. Based on the ADS1256IDB chip, it supports up to 8 single-ended or 4 differential input configurations with an output rate of up to 30ksps. The module communicates via SPI and operates at a 5V power supply, suitable for measuring analog voltages up to 3V.
Specifications of ADS1256 24-bit 8-channel ADC Module
-
Chip Used: ADS1256IDB
-
Resolution: 24-bit
-
Input Configuration: 8 single-ended or 4 differential inputs
-
Output Rate: Up to 30ksps
-
Working Voltage: 5V
-
Analog Input Voltage Range: ≤3V (2V below the 5V power supply)
-
Nonlinearity: ±0.0010%
-
Interface:
-
SPI Pins: SCLK, DIN, DOUT, CS
-
Data Ready Output: DRDY (active low)
-
Power Down Input: PDWN (active low)
-
-
Input Terminals: AIN0-AIN7 for analog voltage inputs
-
Dimensions: ---
Datasheet of ADS1256 24-bit 8-channel ADC Module
