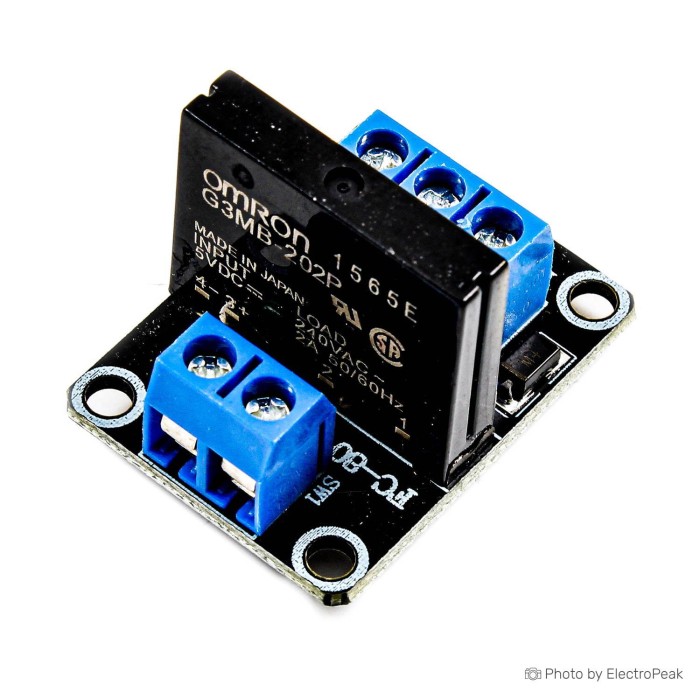

OMRON 1-Channel SSR Solid State Relay - 5V
$0.8500
In stock
SKU
REL-01-014
Volume discounts:
- +100 6 % $0.8000
- +300 8 % $0.7800
- +500 11 % $0.7600
- +1000 13 % $0.7400
Product Variations:
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
Waveshare Raspberry Pi Relay Board
Previous
Description
This module is capable of switching AC voltages between 100 and 240V at up to a 2A current. The module can be controlled from a 5V , 12V , 24V ( Optional ) digital source. A resistive type fuse is provided on the module to help protect excessive current draw.
Features
Channel: Single channel 2A Solid State Relay board
Control Voltage: 5V , 12V , 24V ( Optional )
Working Current: 13.8mAÂ (Max)
Trigger Voltage: 0 ~ 2.5V (Low level)Â Â Â Â Â Â Â
Trigger Current: 2mA
Size: 25mm x 34mm x 25mm
Output Rating:
SSR model: OMRONÂ G3MB-202P
Isolation: Phototriac
Zero crosses: Yes
Rated load voltage: 100V ~ 240V AC
Load current: 0.10A ~Â 2A
Input section:
DC +: Positive power supply (by relay voltage power supply)
DC-: connect power negative
CH: Relay module signal to trigger the end (low to trigger effective)
